whoami

Nuno Ribeiro

Structural Civil Engineer over the last decade

DevOps Engineer @ Cleva Solutions

2024 Dagger Commanders Batch

Ship your dev environment to CI

Topics for today

• Orchestrate builds
• Run tests
• Deploy applications

• two services that run on separete environments
• lint the code
• run units tests
• build containers
• deploy containers to a registry
• build helm charts
• deploy helm helm charts
• test the charts deployment to a local kubernetes cluster

Common problems with Dev/CI environments

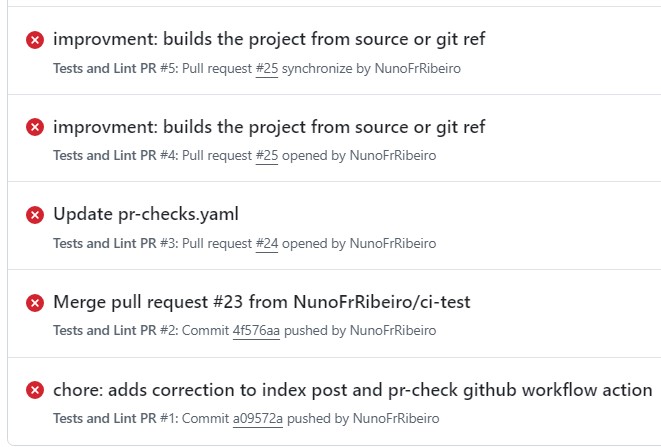

Ready to commit that code?

How it starts 👉

name: CI

on:
  push:
    branches: [main]

jobs:
  ci:
    name: ci
    runs-on: ubuntu-latest
    steps:
      - name: Checkout repository
        uses: actions/checkout@v4
      - name: Setup Go
        uses: actions/setup-go@v5
        with:
          go-version: '1.21.x'
      - name: Install dependencies
        run: go get .
      - name: Build
        run: go build -v ./...
      - name: Test with the Go CLI
        run: go test

40 days of code commits

Developer Environment 👉

brew install go
brew install
golangci-lint
make build
task test
just lint
my-special-script.sh
docker compose dev

365 days of code commits later

 # Foobar pipeline
# Include the Common CI pipeline parameters.
include:
  - project: 'foo/bar/foobarproject/cicdtemplate'
    file: '/Common.gitlab-ci.yml'
  #- /force-app/ui-tests/pipeline.yml

stages:
  - build-metadata-package
  - run-js-tests
  - validate-package
  - deploy-package
  - run-unit-tests
  - run-api-tests
  - run-ui-tests
  - integration

####################################################
# Builds the Metadata Package, builds the Package
# files and Destructive changes
####################################################
build-metadata-package:
  stage: build-metadata-package
  except:
    variables:
      - $SCRATCH_DISABLED
      - $TEST_DISABLED
  only:
    variables:
      - $FORCE_DEVELOP_RUN
      - $FORCE_MASTER_RUN
      - $FORCE_VALIDATE_MASTER
      - $FORCE_RUN
      - $FORCE_DEPLOY
      - $CI_COMMIT_REF_NAME == 'test-integration'
      - $CI_COMMIT_REF_NAME == 'develop'
      - $CI_COMMIT_REF_NAME == 'master'
      - $CI_COMMIT_REF_NAME == 'release/uat'
  allow_failure: false
  script:
    - build_diff_files
  artifacts:
    paths:
      - deploySource
      - deploy
  environment:
    name: foobarproject/$CI_COMMIT_REF_SLUG

# Merges release-branch to develop
####################################################
integration-vp-to-develop:
  stage: integration
  only:
    variables:
      - $CI_COMMIT_REF_NAME == 'release/uat'
  script:
    - merge_branches origin/release/uat develop
  environment:
    name: foobarproject/$CI_COMMIT_REF_SLUG

####################################################
# Merges release-branch to develop
####################################################
integration-develop-to-test:
  stage: integration
  only:
    variables:
      - $CI_COMMIT_REF_NAME == 'develop'
  script:
    - merge_branches origin/develop test-integration
  environment:
    name: foobarproject/$CI_COMMIT_REF_SLUG

####################################################
# Deploys the source Package
####################################################
deploy-package:
  stage: deploy-package
  script:
    - authenticate $FOOBAR_USERNAME $CLIENT_ID "ORG" $LOGIN_URL
    - deploy_baz $FOOBAR_USERNAME "60"
  rules:
    - if: '$DEPLOY_DISABLED == "1"'
      when: never
    - if: '$TEST_DISABLED == "1"'
      when: never
    - if: '$CI_COMMIT_REF_NAME == "test-integration"'
      when: on_success
    - if: '$CI_COMMIT_REF_NAME == "develop"'
      when: on_success
    - if: '$CI_COMMIT_REF_NAME == "release/uat"'
      when: on_success
    - if: '$FORCE_RUN == "1"'
      when: on_success
    - if: '$FORCE_DEVELOP_RUN == "1"'
      when: on_success
    - if: '$FORCE_DEPLOY == "1"'
      when: on_success

####################################################

Enter The

How does it try to solve this problem?

By running your application delivery pipelines in containers

• a daggerized pipeline runs the same wether locally or on your CI provider

• Encapsulate all your project’s tasks and workflows into Functions, written in your programming language of choice.
• Run your Functions from the command line, your language interpreter, or a custom HTTP client.
• Package your Functions into a module, to reuse next project or share with the community on Daggerverse.
• The Daggerverse is a service run by Dagger
• Search for existing modules, and import them into yours
• modules can reuse each other’s Functions - regardless of which language they are written in
• the most common way to use Dagger Functions is via the Dagger CLI.
• Dagger Cloud complements Dagger Functions with a control plane that includes pipeline visualization, operational insights, and distributed caching.

type MyModule struct{}

// Build and publish Docker container
func (m *MyModule) Build(
    ctx context.Context,
    // source code location
    // can be local directory or remote Git repository
    src *dagger.Directory,
) (string, error) {
    // build app
    builder := dag.Container().
        From("golang:latest").
        WithDirectory("/src", src).
        WithWorkdir("/src").
        WithEnvVariable("CGO_ENABLED", "0").
        WithExec([]string{"go", "build", "-o", "myapp"})

    // publish binary on alpine base
    prodImage := dag.Container().
        From("alpine").
        WithFile("/bin/myapp", builder.File("/src/myapp")).
        WithEntrypoint([]string{"/bin/myapp"})

    // publish to ttl.sh registry
    addr, err := prodImage.Publish(ctx, "ttl.sh/myapp:latest")
    if err != nil {
        return "", err
    }

    return addr, nil
}

• dockerfile instructions

import { dag, Container, Directory, object, func } from "@dagger.io/dagger"

@object()
// eslint-disable-next-line @typescript-eslint/no-unused-vars
class Ci {

  /**
   * example usage: "dagger call ci --source ."
   */
  @func()
  async ci(source: Directory): Promise<string> {
    // Use Golang module to configure project
    var goProject = dag.golang().withProject(source)

    // Run Go tests using Golang module
    await goProject.test()

    // Get container with built binaries using Golang module
    var image = await goProject.buildContainer()

    // Push image to a registry using core Dagger API
    var ref = await image.publish("ttl.sh/demoapp:1h")

    // Scan image for vulnerabilities using Trivy module
    return dag.trivy().scanContainer(dag.container().from(ref))
  }
}

• Vulnerabilities

pipeline { agent { label 'dagger' }
  stages {
    stage("dagger") {
      steps {
        sh '''
            dagger call build
        '''
      }
    }
  }
}

name: CI
on:
 push:
   branches: [main]

jobs:
 dagger:
   name: dagger
   runs-on: ubuntu-latest
   steps:
     - uses: actions/checkout@v4
     - run: dagger call build

Why and How do I use dagger?

Tired of YAML/GROOVY/….

You can check out the demo source code @

github.com/NunoFrRibeiro/devops-porto-nov

Obrigado!

@diasapensar

@diasapensar.bsky.social

In/nunofrribeiro

github/NunoFrRibeiro

https://blog.nfribeiro.com

Join Discord! dagger.io

Try the Quickstart! docs.dagger.io
